Highlights

'Ideal For'

• Landscapers performing final grading, leveling topsoil, and backfilling trenches in confined residential spaces.
• Driveway Contractors spreading gravel, crushed stone, or reclaim with precision depth control.
• Concrete Crews prepping subgrades and leveling sand or stone before pouring pads and walkways.
• Utility Workers backfilling narrow utility ditches and managing spoil piles in areas inaccessible to full-size dozers.
• Estate Owners maintaining long gravel drives and managing snow removal on paved surfaces.

'Need to Knows'

• Hydraulic Angle Control: Equipped with dual heavy-duty hydraulic cylinders that allow for 30° of left and right angling from the operator station, eliminating the need for manual pins.
• Four-Way Motion: Engineered to tilt and angle simultaneously, providing the necessary movement to create crowns on driveways or cut swales for drainage.
• Replaceable Bolt-On Cutting Edge: Features a high-carbon, heat-treated steel cutting edge that is fully reversible and replaceable, protecting the main moldboard from premature wear.
• Reinforced Moldboard Design: Constructed with a heavy-duty steel moldboard featuring vertical and horizontal ribs to prevent twisting or bowing under heavy pushing loads.
• Adjustable Skid Shoes: Includes heavy-duty, bolt-on skid shoes that allow the operator to set a consistent blade height, preventing the edge from "digging in" on soft ground or gravel.
• Spring-Trip Safety System: Designed with an integrated trip-spring mechanism that allows the blade to "flip" forward when striking a solid obstruction, protecting both the attachment and the loader's frame.

'Warranty & Specs'

• Width Options: Available in 48", 54", and 60" widths to match various mini-loader wheel/track bases.
• Blade Height: 18" Moldboard (Standard).
• Angle Capacity: 30° Hydraulic Angle Left/Right.
• Mounting Type: Standard Mini-Universal (Toro Dingo) or Bobcat MT style.
• Cutting Edge: 1/2" x 6" Bolt-on High-Carbon Steel.
• Origin: Hand-welded and powder-coated in Denton, North Carolina (USA).

Product Info

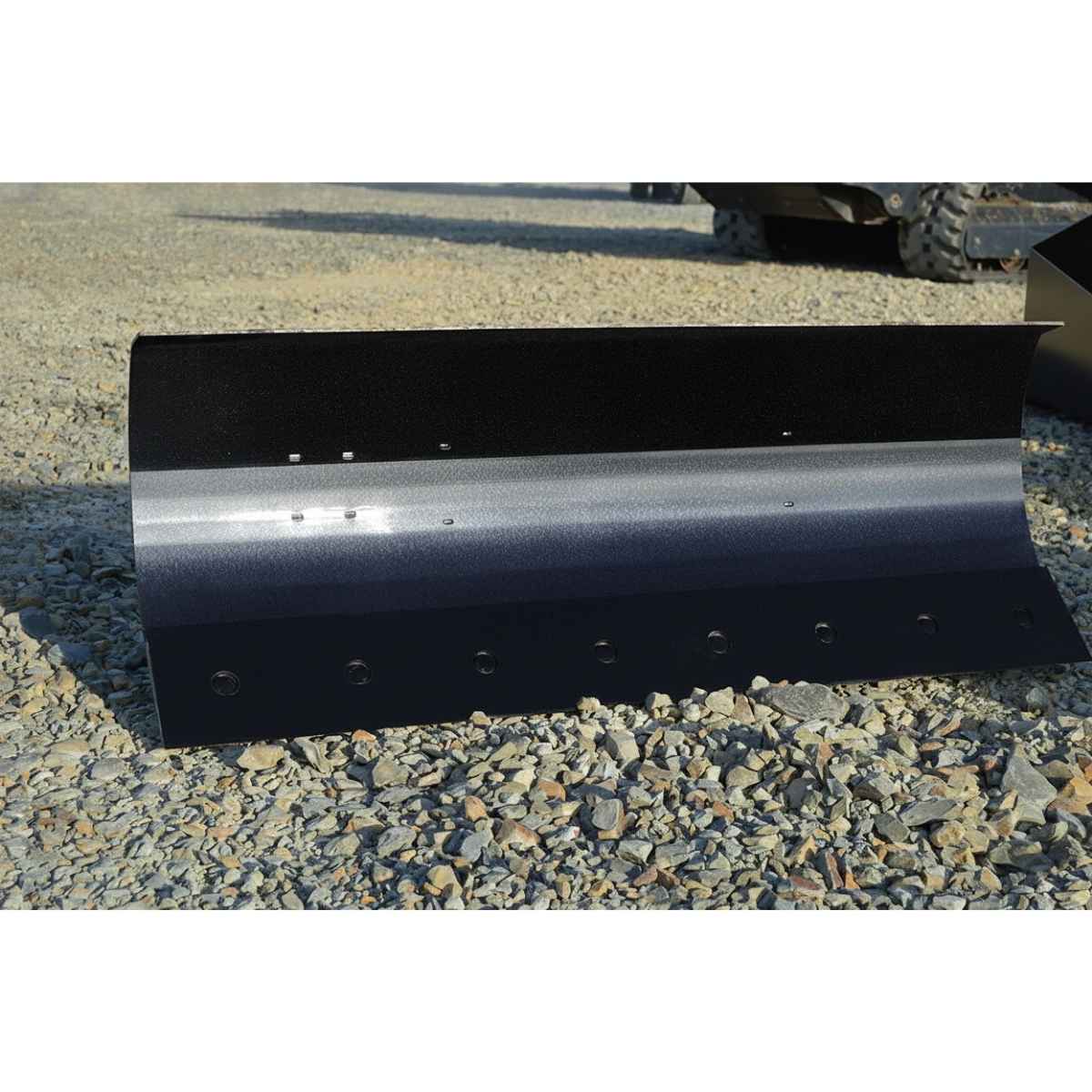

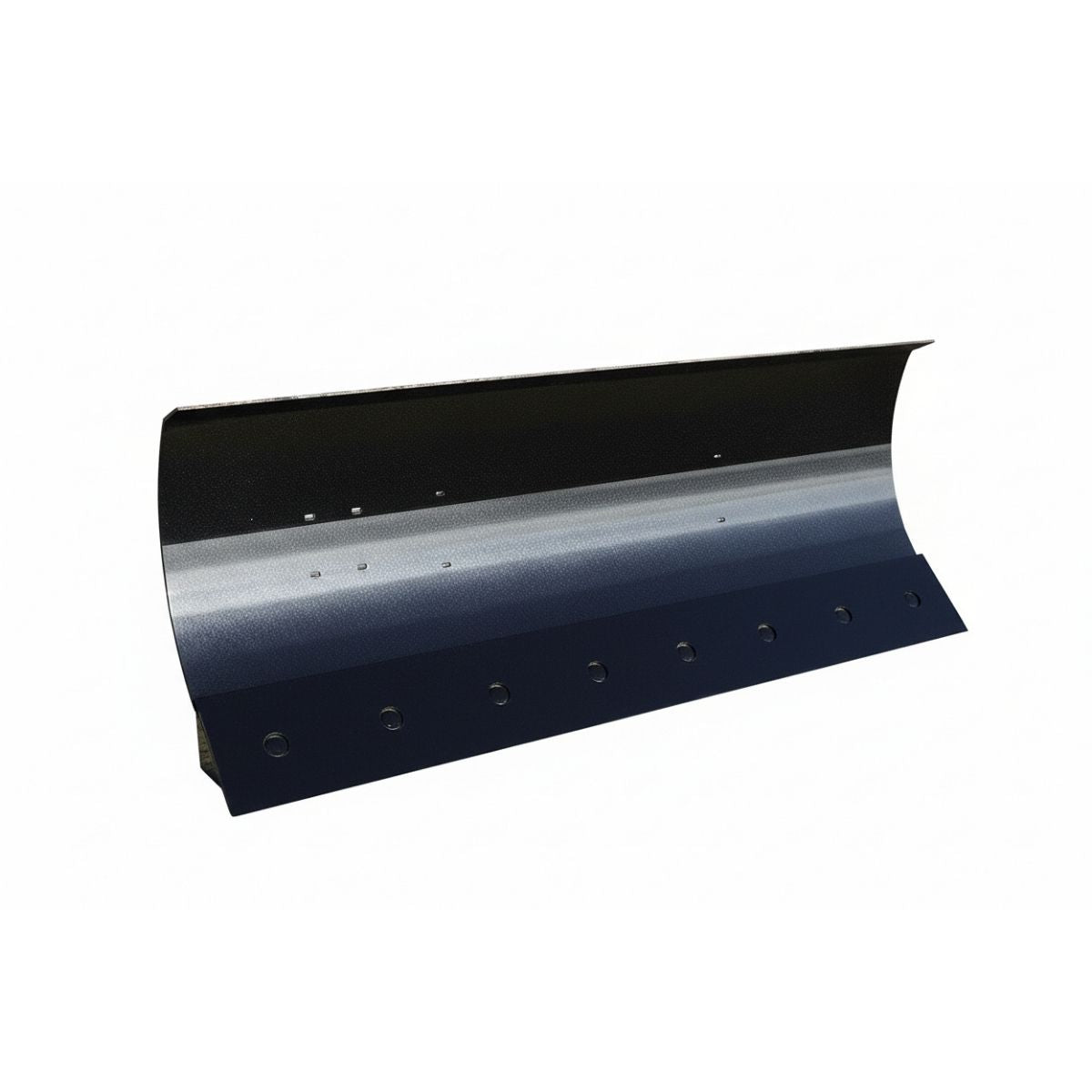

Loflin Fabrication Mini Skid Steer Dozer Blade

Transform Your Mini Loader into a Grading Powerhouse for Precision Leveling and Backfilling

Stop struggling to achieve a perfectly level grade with a standard loader bucket. If you’ve spent hours hand-raking gravel or trying to backfill utility trenches by hand, you know how difficult it is to get professional results in tight spaces. The Loflin mini skid steer dozer blade turns your compact loader into a true grading machine, allowing you to move material with total control while navigating narrow gates and residential backyards.

Using the wrong attachment for site prep leads to wavy surfaces and wasted material. You have likely dealt with the frustration of "digging in" too deep or leaving behind unsightly ruts because your current gear lacks depth control. Without a dedicated blade, you’re forced to make multiple passes that eat into your fuel and labor costs. This often results in a subgrade that requires manual correction before you can pour or sod.

The Loflin mini skid steer dozer blade changes your workflow by providing 4-way hydraulic motion directly from the operator station. Hand-welded in Denton, North Carolina, this blade features dual heavy-duty hydraulic cylinders that offer 30 degrees of angling to either side. Whether you run a Toro Dingo or a Bobcat MT, this attachment allows you to create precise crowns on driveways and cut drainage swales with surgical accuracy.

Once you pin this blade to your machine, the days of uneven gravel spreads and messy backfills are over. The reinforced moldboard is built with vertical and horizontal ribs to prevent twisting under heavy loads of soil or crushed stone. You gain the advantage of adjustable, bolt-on skid shoes that maintain a consistent height. This ensures the high-carbon steel cutting edge stays at the exact depth you need for a manicured finish.

At Timber Splitter Warehouse, we know that hidden obstructions like stumps or rocks can ruin a day's work. That’s why this dozer blade is engineered with an integrated spring-trip safety system that allows the moldboard to flip forward upon impact. This is a contractor-grade tool designed for the daily grind, featuring a 1/2" x 6" reversible bolt-on cutting edge that is easily replaced when it finally wears down after years of use.

Invest in a grading solution that values your time and your reputation for quality. This high-torque investment expands the capabilities of your mini loader fleet, making site prep faster and more profitable. When you choose this North Carolina-crafted dozer blade, you are choosing the durability required for heavy spreading and leveling. Finish your projects with precision, protect your equipment, and outwork the competition with the iron that professionals trust.

Why Choose The Loflin Fabrication Mini Skid Steer Dozer Blade?

4-Way Hydraulic Motion

Features dual cylinders for 30° left and right angling, allowing for complex grading and crowning without leaving the operator platform.

Dual Mount Options

Available in both Toro Dingo (Mini-Universal) and Bobcat MT mount styles for a perfect, factory-fit connection.

Spring-Trip Protection

An integrated trip-spring mechanism allows the blade to give way when striking solid objects, preventing damage to the loader and attachment.

Reversible Cutting Edge

Equipped with a 1/2" x 6" high-carbon, heat-treated steel edge that can be flipped to double its lifespan before replacement.

Reinforced Moldboard

The 18" tall blade is structurally braced with vertical and horizontal ribs to ensure it stays rigid under the heaviest pushing forces.

Adjustable Skid Shoes

Bolt-on, heavy-duty shoes provide precise depth control, preventing the blade from "gouging" into soft surfaces or gravel.

USA-Made Quality

Every unit is hand-welded and powder-coated in Denton, NC, using premium American steel for long-term industrial durability.

Additional Options: Check out other Mini Skid Steer Attachments options or other Loflin Fabrication Attachments

Specs

Loflin Mini Dozer Blade Technical Specifications

Applications and Compatibility
